Common Ground for Critical Shuttle and Space Station User Interfaces:
An Independent Verification and Validation Approach

Mihriban Whitmore		Andrea H. Berman
Lockheed Martin		Lockheed Martin
Engineering and Sciences Services		Engineering and Sciences Services
2400 NASA Road 1, C81		2400 NASA Road 1, C81
Houston, TX 77058-3799		Houston, TX 77058-3799
+1 713 483 9725		+1 713 483 9709
mihriban.whitmore@spmail.jsc.nasa.gov		andrea.berman@spmail.jsc.nasa.gov

Human Factors and Ergonomics Laboratory
Frances E. Mount, Manager
NASA Johnson Space Center

ABSTRACT

The Human Factors and Ergonomics Laboratory (HFEL) at the NASA Johnson Space Center is in the process of developing an automated software interface checking tool to assess the degree to which space-related critical and high risk software system user interfaces meet objective human factors standards across each NASA program and project. A prototype tool has been identified, and usability testing is underway. Testing compares analysis time and similarity of results for the automated tool and for human-computer interface experts. The results of the evaluation will be included in the poster.

Keywords

Computer-based tool, usability testing, HCI evaluation

INTRODUCTION

The user interface is a critical part of any computer system and merits careful evaluation before it is released. Independent Verification and Validation (IV&V) is one way to carefully ensure quality software throughout a complete system. The Human Factors and Ergonomics Laboratory at the NASA Johnson Space Center is in the process of developing an automated IV&V tool which will assess the degree to which space-related critical and high risk software system user interfaces meet human factors standards across each NASA program and project, such as International Space Station (ISS). The primary goal of this tool is to check objective interface characteristics such as button size, labeling and location, fonts, point sizes, and the use of colors for confomance to standards. The human-computer interface (HCI) expert is then spared those time-consuming, monotonous tasks and can concentrate on more cerebral interface issues, such as functionality and interaction styles. This IV&V methodology as a whole represents a series of activities which strive to improve the quality and the reliability of HCIs and to ensure that the delivered interfaces satisfy the users' operational needs.

IV&V efforts are currently in the early stages. Several existing software metric tools have been identified and researched: 1) the KRI/AG tool, 2) a University of Maryland tool, and 3) CHIMES, a tool developed at NASA Goddard Space Flight Center. Table 1 outlines the advantages, disadvantages, and relevance of each tool to this IV&V effort. KRI/AG is fairly interactive and fully developed, but it only runs on Motif interfaces and verifies highly subjective guidelines [2, 3, 4]. The University of Maryland tool assesses objective characteristics (e.g., button size and labeling, fonts, and colors), but it is still in development and is not yet interactive nor automatic [5, 6]. Computer- Human Interaction Models (CHIMES) is fairly interactive, fully developed, and assesses objective interface characteristics [1]. CHIMES therefore fits the needs of the NASA IV&V process best, and, as NASA-developed software, is easily accessible.

TABLE 1. Advantages and disadvantages of three existing automated IV&V tools

Software	Advantages	Disadvantages	How well does it meet our IV&V requirements?
KRI/AG	- Fairly interactive - Multiple comments on the same topic are aggregated into one comment	- Only runs on Motif interfaces - Attempts to verify highly subjective guidelines, resulting in trivial or irrelevant comments	- Not very well -- the IV&V tool will only verify objective interface characteristics. This tool attempts to cover more ground than is necessary for NASA IV&am;V efforts.
Univ. of Maryland tool	- Any type of interface can be translated into the canonical form read by the tool - Assesses consistency of objective interface characteristics such as: fonts, button labeling, and button layout	- Still in development - Not yet interactive or automatic - Currently only checks dialog boxes	- Moderately well -- this tool concentrates on objective interface characteristics and will accept interfaces developed under any system, but it is still in developement.
CHIMES	- Fairly interactive - In some instances, CHIMES is able to make the changes that it suggests - Easily accessible	- Only runs on a Sun workstation with SunOS and Motif, under the TAE+ User Interface Management System	- Well -- CHIMES verifies more objective guidelines than KRI/AG and is fully developed already.

IV&V TOOL DESCRIPTION

CHIMES has the unique quality of being able to switch between two modes, depending on whether an alphanumeric interface or a graphical user interface (GUI) is being checked. In the demand-modeling mode used for alphanumeric interfaces, CHIMES estimates the demands that the interface will place on an experienced operator's multiple cognitive resources. In the guidelines-based GUI mode, CHIMES checks for compliance with human factors guidelines and toolkit style requirements. Furthermore, the latest version of CHIMES allows users to customize its rules and to focus on particular interface components (e.g., button sizes) [1].

The HFEL's usability testing of CHIMES concentrates on its guidelines-based GUI mode and will help the NASA IV&V team members refine their concept of the future tool and its proposed functionality. If, after usability testing is completed, CHIMES is found to be directly applicable to our needs, it will become the IV&V software tool; otherwise, an in-house tool will be developed based on lessons learned from the CHIMES evaluations.

USABILITY TESTING OF CHIMES

Initial subjective investigations showed that CHIMES was faster than an HCI expert at checking objective interface characteristics: number of typefaces per display, type size, type style, line thickness, line style, color usage, and consistency of each across multiple interfaces.

Formal usability testing is currently underway. Five fairly mature ISS interface designs from five different space station subsystems are being checked. ISS interfaces were selected for their highly complex nature; figure 1 shows excerpts of two of these interfaces. Click on either graphic excerpt to see the entire interface. CHIMES analyzes the conformance of the interfaces' objective HCI characteristics listed above to HCI standards and checks across interfaces for continuity. The time required for the complete analysis is recorded. Four in-house HCI experts then individually perform the same objective analysis on each interface and the continuity check across interfaces, following a formal protocol to ensure that the experts and CHIMES are checking the same objective characteristics. Each expert�s total time is also recorded. Their mean completion time is then compared to the total CHIMES time. The results of each expert�s analysis are also cross- checked with each CHIMES analysis to see where the results match. Preliminary findings show that CHIMES appears to perform the analyses more quickly and reports guideline conformance and discrepancy in as much detail as the experts. Detailed analysis and results will be included in the poster.

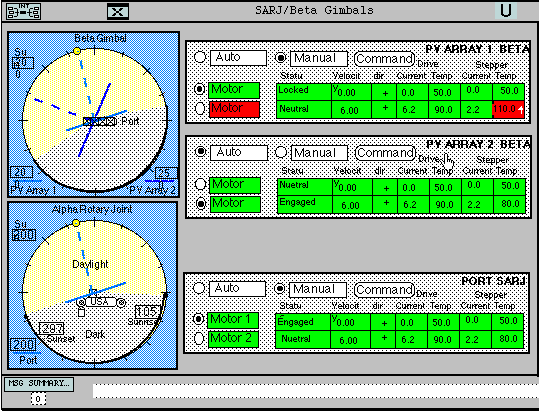

Figure 1. Excerpts of two sample space station displays. Click on them to see an entire interface.

DISCUSSION-COMMON GROUND

IV&V of NASA's critical and high risk system interfaces is a profound task. It involves the analysis of both mission control and vehicle interfaces from the space shuttle and the International Space Station (ISS) programs. The ISS program alone consists of ten main display development teams (e.g., Systems, Operations, Safety & Mission Assurance), each of which is subdivided into at least five smaller teams. These teams are all responsible for different systems that are developed in parallel; inter-team communication regarding standardization of software user interfaces is quite a challenge. This IV&V software tool is being proposed as the mechanism for achieving common ground between these diverse systems.

On the shuttle side, the Multifunction Electronic Display Subsystem (MEDS) project is redesigning shuttle displays and researching the automation of some ground and crew tasks. This project alone could benefit greatly from a software tool that could check interfaces for continuity; one can see how such a tool could revolutionize interface standardization efforts across the entire shuttle program.

The goal of conformance of space-related critical software displays to human factors and HCI standards is an important one. Such a common ground will indeed provide a unifying framework for future crews of both the space shuttle and ISS. Standardizing interfaces will allow the crews to perform necessary tasks without having to shift mental paradigms between systems. Updates to the software tool will also ensure that new HCI concepts and technologies will always have an opportunity to be incorporated.

REFERENCES

1. Jiang, J., Murphy, E., and Carter, L. Computer- Human Interaction Models (CHIMES): Revision 3, May 1994. Technical Report, National Aeronautics and Space Administration, DSTL-94-008.

2. Lowgren, J., and Lauren, U. Supporting the use of guidelines and style guides in professional user interface design. Interacting With Computers, 5, 4, (1993) 385-396.

3. Lowgren, J., and Nordquist, T. A knowledge-based tool for user interface evaluation and its integration in a UIMS, in Proceedings IFIP INTERACT '90, 395-400.

4. Lowgren, J., and Nordquist, T. Knowledge-based evaluation as design support for graphical user interfaces, in Proceedings of CHI '92, 181-188.

5. Mahajan, R., and Shneiderman, B. (1995). A Family of User Interface Consistency Checking Tools. Technical Report University of Maryland, College Park, CAR-TR-770.

6. Shneiderman, B., Chimera, R., and Jog, N. (1995). Evaluating Spatial and Textual Style of Displays. Technical Report University of Maryland, College Park, CAR-TR-763.
